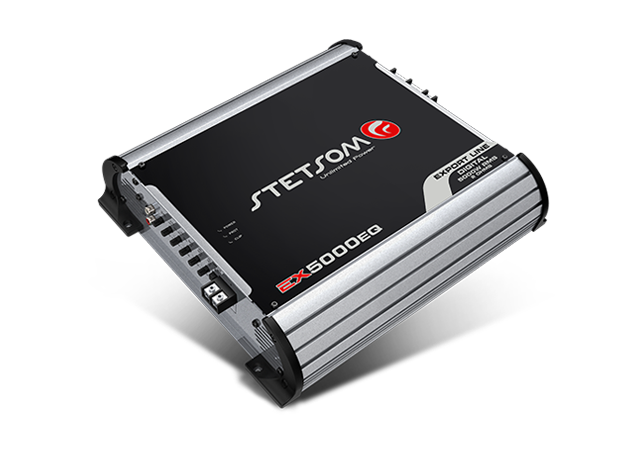

Stetsom EX5000EQ – 2 Ohms – Full Range Brazilian Amplifier.
1 Year Warranty on United States.
EXPORT LINE STETSOM: A line for export products that will please the world and Brazil.
Designed for those seeking high performance and fidelity sound in automotive amplifiers with what is most innovative in electronic components.
Performance to charm!
EX5000 EQ features:
– Equalizer with three bands: BASS, MID BASS, MID HIGH beyond traditional resources Level, High Pass and Low Pass.
Bass EQ: -10dB to + 10dB
EQ Mid-Bass: -10dB to + 10dB
EQ Mid-High: -10dB to + 10dB
TECHNICAL SPECIFICATIONS EX5000EQ – 2 Ohms
|FEATURES||EX 5000 EQ – 2 OHMS|
|Number of Channels||1|
|RMS Power at 2 Ohm 12.6V||5000W RMS|
|RMS Power at 4 Ohm 12.6V||3050W RMS|
|RMS Power at 2 Ohm 14.4V||5500W RMS|
|RMS Power at 4 Ohm 14.4V||3550W RMS|
|Supply Voltage||9,5 ~ 15V|
|Frequency Response||10Hz ~15KHz|
|Crossover Low Pass||50Hz ~25KHz|
|Crossover High Pass||10Hz ~700Hz|
|Signal to Noise||> 90 dB|
|Harmonic Distortion||< 0,9 % THD|
|Input Impedance||26K OHMS|
|Impedance Output||2 OHMS|
|Consumption with Signal Musical||3,1A ~240A|
|Consumption with Signal Bass||3,1A ~480A|
|Dimensions (H x W x D) mm||77 x 294 x 310 mm|
|Weight Kg||4,1 Kg|
You can see videos, full product datasheet on Stetsom Official Site.
